{"id":9966736245055,"title":"Rain Bird LXIVMOUT 2 Wire Output Device","handle":"rain-bird-lxivmout-2-wire-output-device","description":"\u003cp\u003e\u003cspan\u003eThe IVM-SEN 2 wire control device interfaces with LX-IVM to control weather sensors or flow sensors. To suit the ESPLXIVM60 or the ESPLXIVM240.PRO.\u003c\/span\u003e\u003c\/p\u003e\n\u003cdiv class=\"product info detailed\"\u003e\n\u003cdiv class=\"product data items\" role=\"tablist\"\u003e\n\u003cdiv class=\"data item content\" aria-labelledby=\"tab-label-additional\" id=\"additional\" data-role=\"content\" role=\"tabpanel\" aria-hidden=\"false\"\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e","published_at":"2025-05-02T13:45:02+10:00","created_at":"2025-04-29T11:27:06+10:00","vendor":"Rain Bird","type":"Solenoid","tags":["Controller Type_Automatic","Controller Type_Automatic (AC)","rain sensor","Sensor Type_Rain","Valve Type_Solenoid"],"price":33000,"price_min":33000,"price_max":33000,"available":true,"price_varies":false,"compare_at_price":45124,"compare_at_price_min":45124,"compare_at_price_max":45124,"compare_at_price_varies":false,"variants":[{"id":50840036016447,"title":"RAIN BIRD LXIVMOUT 2 WIRE OUTPUT DEVICE","option1":"RAIN BIRD LXIVMOUT 2 WIRE OUTPUT DEVICE","option2":null,"option3":null,"sku":"F47120","requires_shipping":true,"taxable":true,"featured_image":{"id":49252522426687,"product_id":9966736245055,"position":1,"created_at":"2025-04-29T11:27:16+10:00","updated_at":"2025-04-29T11:27:18+10:00","alt":null,"width":1000,"height":1000,"src":"\/\/duralirrigation.com.au\/cdn\/shop\/files\/F47120.jpg?v=1745890038","variant_ids":[50840036016447]},"available":true,"name":"Rain Bird LXIVMOUT 2 Wire Output Device - RAIN BIRD LXIVMOUT 2 WIRE OUTPUT DEVICE","public_title":"RAIN BIRD LXIVMOUT 2 WIRE OUTPUT DEVICE","options":["RAIN BIRD LXIVMOUT 2 WIRE OUTPUT DEVICE"],"price":33000,"weight":0,"compare_at_price":45124,"inventory_quantity":0,"inventory_management":null,"inventory_policy":"deny","barcode":"077985031268","featured_media":{"alt":null,"id":40748126110015,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/duralirrigation.com.au\/cdn\/shop\/files\/F47120.jpg?v=1745890038"}},"requires_selling_plan":false,"selling_plan_allocations":[]}],"images":["\/\/duralirrigation.com.au\/cdn\/shop\/files\/F47120.jpg?v=1745890038"],"featured_image":"\/\/duralirrigation.com.au\/cdn\/shop\/files\/F47120.jpg?v=1745890038","options":["Variant"],"media":[{"alt":null,"id":40748126110015,"position":1,"preview_image":{"aspect_ratio":1.0,"height":1000,"width":1000,"src":"\/\/duralirrigation.com.au\/cdn\/shop\/files\/F47120.jpg?v=1745890038"},"aspect_ratio":1.0,"height":1000,"media_type":"image","src":"\/\/duralirrigation.com.au\/cdn\/shop\/files\/F47120.jpg?v=1745890038","width":1000}],"requires_selling_plan":false,"selling_plan_groups":[],"content":"\u003cp\u003e\u003cspan\u003eThe IVM-SEN 2 wire control device interfaces with LX-IVM to control weather sensors or flow sensors. To suit the ESPLXIVM60 or the ESPLXIVM240.PRO.\u003c\/span\u003e\u003c\/p\u003e\n\u003cdiv class=\"product info detailed\"\u003e\n\u003cdiv class=\"product data items\" role=\"tablist\"\u003e\n\u003cdiv class=\"data item content\" aria-labelledby=\"tab-label-additional\" id=\"additional\" data-role=\"content\" role=\"tabpanel\" aria-hidden=\"false\"\u003e\u003c\/div\u003e\n\u003c\/div\u003e\n\u003c\/div\u003e"}

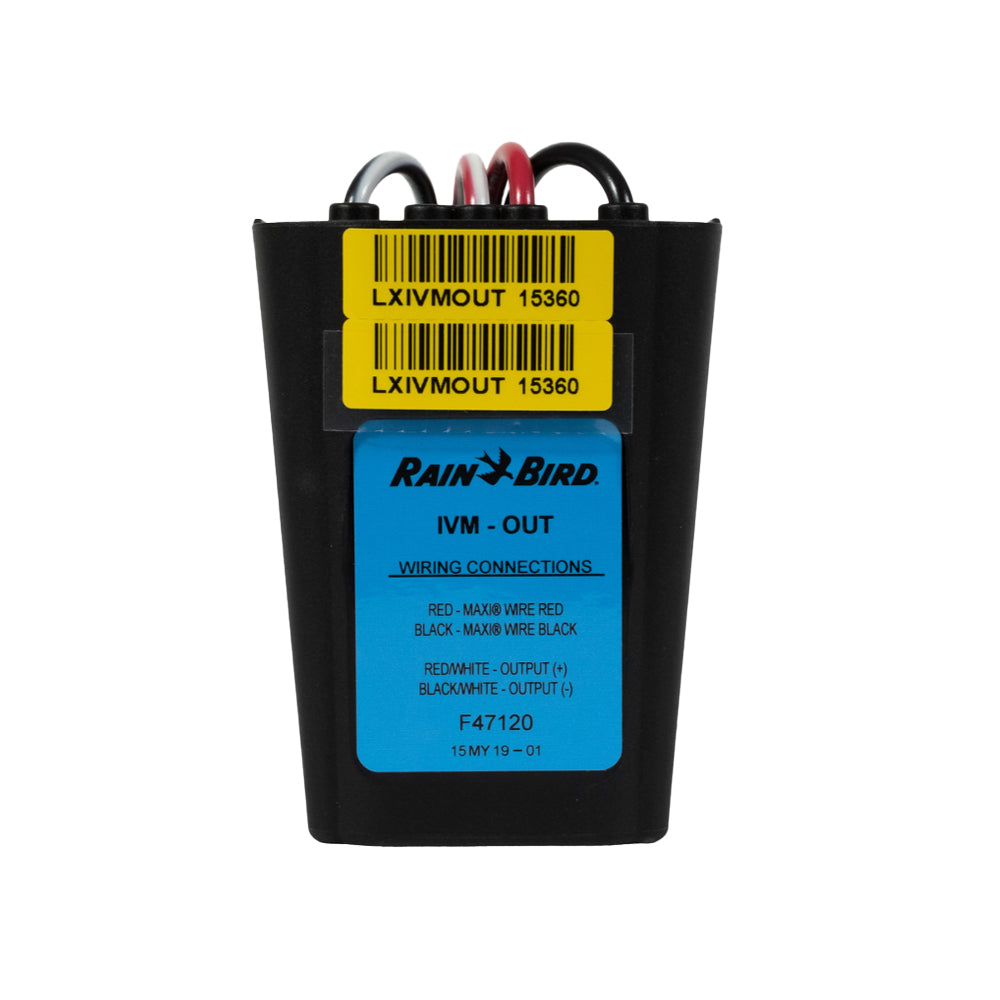

  1. Connect the red and black wires on the IVMOUT to the 2-Wire Path.
  2. Connect the red/white striped wire on the IVM-OUT to the DC latching solenoid red wire.
  3. Connect the black/white striped wire on the IVM-OUT to the DC latching solenoid black wire.
  4. For future troubleshooting or modifications, it is recommended to leave an additional 3 feet (1 meter) of 2-Wire cable stored in each valve box location

Note: Make sure that the DC latching solenoid is compatible with non Rain Bird valves. Contact the valve manufacturer for more information.

Maximum combined wire length between IVMOUT and its load (e.g. Solenoid) shall be 48 in. This includes pre-installed IVM-OUT wire (24 in.) and solenoid wires (22 in.). Use only WC20 splice kits for all wiring connections to the 2-Wire Path. Improper wiring can cause serious damage to your controller or irrigation system.

Weight: 1 lbs

Dimensions: 2 x 1 x 3in
