Not suitable for potable water unless used in conjunction with disinfection.

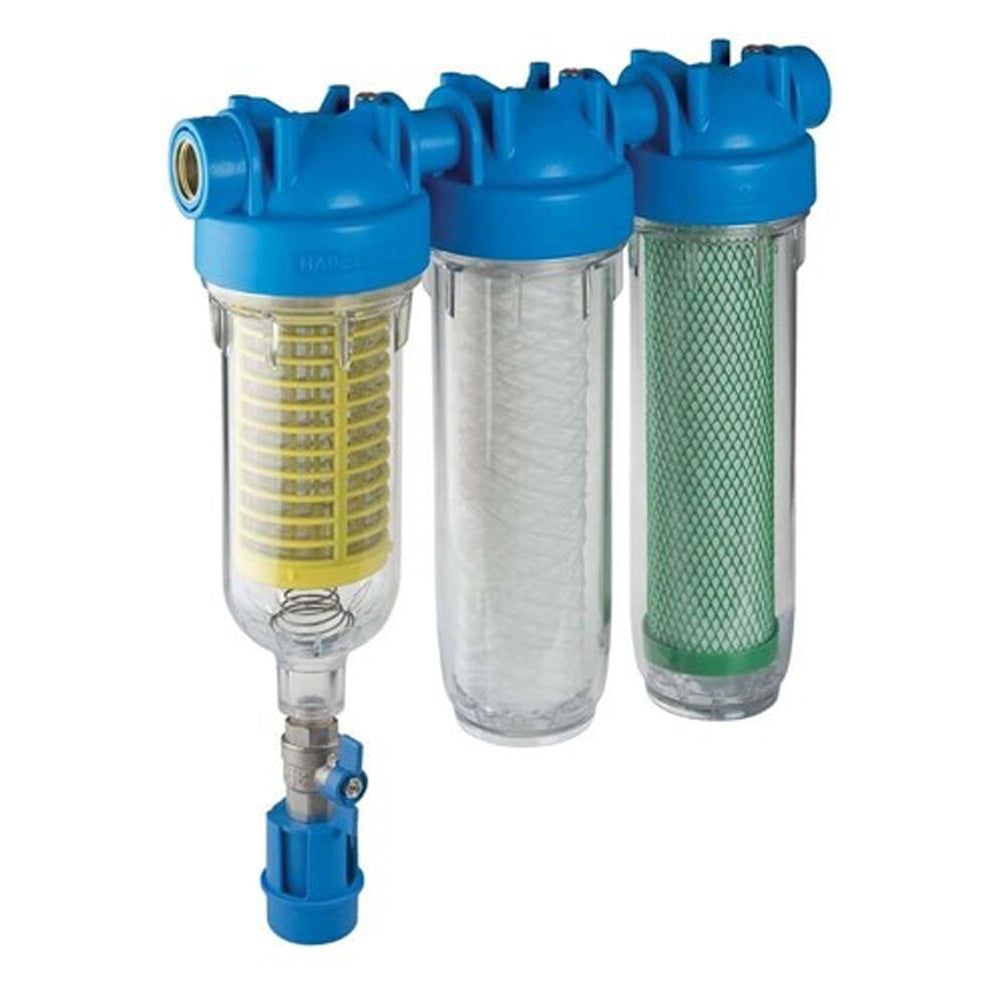

A Hydra Rainmaster Trio Self Cleaning Filter with 1” BSP Plastic inlet/outlet with 90 micron stainless steel mesh filter moulded to two 10” Std housings containing 25 micron depth sediment cartridge and a 10 micron eco friendly carbon block filter cartridge.
Specially Designed for sediment filtration on non-potable rain water supplies.
Flow rates up to 91lpm, however note that lower flows = lower pressure loss and better ability of the carbon to deal with odour.
The filter bowls are made from PET with exclusive ‘Atlas Green’ environmentally friendly manufacturing process. This clear filter bowl in combination with the included pressure gauges give an easy visual indicator of when the filter should be cleaned.
The Hydra Rainmaster units are multistage units designed especially for non-potable rain water applications.
Rainwater tanks that are not used for potable water are often used to supply toilets, washing machines and gardens.
Non-potable rain water tanks often aren’t cleaned as frequently as potable rain water tanks, this can lead to valves etc being obstructed.
Hydra Rainmaster is designed to prevent sediment from depositing in the lines, valves from blocking and improve odour.
Italian made, for superior construction, the Atlas Filtri hydra range of hydra self cleaning filters make coarse sediment filtration easy and convenient.
Features include:
| Working Conditions | |
|---|---|
| Max Working Pressure | 8bar (116 psi) |
| Max Working Temperature | 45°C (113°F) |
| Min Working Temperature | 4°C (39.2°F) |
Technical Specifications
| Brand | Atlas Filtri |
| Product Type | Hydra Self CleaningFilters |
| Flow Rate (L/min) | 91.6 |
| Material | Polypropylene/PET |
| Nominal Micron Rating | 10 |
| Inlet/Outlet | 1" |
| Min Pressure (bar) | 1.8 |
| Max Pressure (bar) | 8 |
| Min Temp (degrees celsius) | 4 |
| Max Temp (degrees celsius) | 45 |
| Application | Whole Supply |
Not suitable for potable water unless used in conjunction with disinfection.
A Hydra Rainmaster Trio Self Cleaning Filter with 1” BSP Plastic inlet/outlet with 90 micron stainless steel mesh filter moulded to two 10” Std housings containing 25 micron depth sediment cartridge and a 10 micron eco friendly carbon block filter cartridge.
Specially Designed for sediment filtration on non-potable rain water supplies.
Flow rates up to 91lpm, however note that lower flows = lower pressure loss and better ability of the carbon to deal with odour.
The filter bowls are made from PET with exclusive ‘Atlas Green’ environmentally friendly manufacturing process. This clear filter bowl in combination with the included pressure gauges give an easy visual indicator of when the filter should be cleaned.
The Hydra Rainmaster units are multistage units designed especially for non-potable rain water applications.
Rainwater tanks that are not used for potable water are often used to supply toilets, washing machines and gardens.
Non-potable rain water tanks often aren’t cleaned as frequently as potable rain water tanks, this can lead to valves etc being obstructed.
Hydra Rainmaster is designed to prevent sediment from depositing in the lines, valves from blocking and improve odour.
Italian made, for superior construction, the Atlas Filtri hydra range of hydra self cleaning filters make coarse sediment filtration easy and convenient.
Features include:
| Working Conditions | |
|---|---|
| Max Working Pressure | 8bar (116 psi) |
| Max Working Temperature | 45°C (113°F) |
| Min Working Temperature | 4°C (39.2°F) |
Technical Specifications
| Brand | Atlas Filtri |
| Product Type | Hydra Self CleaningFilters |
| Flow Rate (L/min) | 91.6 |
| Material | Polypropylene/PET |
| Nominal Micron Rating | 10 |
| Inlet/Outlet | 1" |
| Min Pressure (bar) | 1.8 |
| Max Pressure (bar) | 8 |
| Min Temp (degrees celsius) | 4 |
| Max Temp (degrees celsius) | 45 |
| Application | Whole Supply |
